• Teknologi pengisaran lanjutan mencapai ketepatan diameter bilah ultra tinggi dan diameter batang, sesuai untuk acuan ketepatan dan pemprosesan bahagian.
• Salutan kalis haus tinggi digunakan. Struktur peralihan arka memastikan rintangan pecah yang tinggi dan membolehkan pemotongan jangka panjang keluli keras.

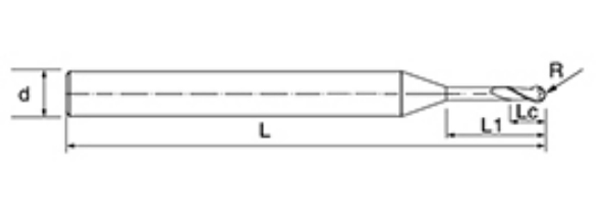

| Tidak. | Diameter D | Sudut R R | Panjang Seruling Lc | Panjang Berkesan L1 | Panjang Keseluruhan L | Shank Dia d | Kiraan Bilah F |
| NNC-2BSP-D1-L3 | 1 | 0.5 | 1 | 3 | 50 | 4 | 2 |
| NNC-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNC-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNC-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D1-L16 | 1 | 0.5 | 1 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L14 | 1.5 | 0.75 | 1.5 | 14 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L16 | 1.5 | 0.75 | 1.5 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L18 | 1.5 | 0.75 | 1.5 | 18 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L20 | 1.5 | 0.75 | 1.5 | 20 | 50 | 4 | 2 |
| NNC-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D2-L14 | 2 | 1 | 2 | 14 | 50 | 4 | 2 |
| NNC-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
| NNC-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
| NNC-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
| NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 60 | 6 | 2 |
| NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 75 | 6 | 2 |
| NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 60 | 6 | 2 |
| NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
| NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 60 | 6 | 2 |
| NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 75 | 6 | 2 |
| NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 75 | 6 | 2 |
| NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 60 | 6 | 2 |
| NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 75 | 6 | 2 |
| NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 60 | 6 | 2 |
| NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| Siri Alat | Diameter | Jejari | Jejari Sudut | Panjang Seruling | Panjang Berkesan | Panjang Keseluruhan | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Pemotong Pengilangan Karbida Universal NNC | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /-0.005 | CR0.1~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0.012 | R2.0~R5.0 | /-0.008 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~R10.0 | /-0.01 | |||||||
Kilang hujung hidung bebola alur dalam 2 seruling NNC-2BSP tersedia dalam pelbagai saiz, termasuk diameter 0.5mm, 1.0mm, 1.5mm dan 2.0mm, menyediakan penyelesaian yang fleksibel untuk pelbagai keperluan pemesinan.
Reka bentuk hidung bebola dalam alur khas membantu mengosongkan cip dengan lebih lancar dan memanjangkan hayat alat dalam rongga dalam dan aplikasi kontur yang kompleks. Konfigurasi dua seruling bukan sahaja menggalakkan aliran cip, tetapi juga mengekalkan kawasan sentuhan canggih yang stabil untuk memenuhi keperluan pemesinan kontur ketepatan tinggi dan peralihan permukaan melengkung.
Produk ini dihasilkan dengan substrat zarah ultra-halus (0.4μm) dan proses salutan komposit kromium-aluminium terkini untuk memastikan rintangan haus dan haba yang sangat baik dalam keadaan berkelajuan tinggi. Struktur butiran ultra-halus menjadikan kelebihan pemotongan lebih tajam dan mengurangkan impak dan haus semasa operasi, manakala teknologi pengisaran dan penggilap yang unik memastikan ketepatan tepi dan permukaan licin.
Sesuai untuk pemotongan ringan logam biasa seperti keluli karbon, keluli mati, keluli tahan karat dan besi tuang.
