Benang metrik: Selaras dengan piawaian ISO, sudut benang ialah 60°.
Reka bentuk tiga gigi: Terdapat tiga tepi pemotong pada alat, yang boleh memproses berbilang benang pada masa yang sama untuk meningkatkan kecekapan pemprosesan.
Kekerasan pemprosesan yang disyorkan: HRC≤45°

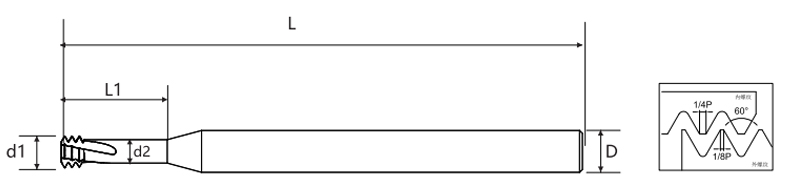

| Pitch | Gigi Kasar UNC | Gigi Halus UNF | Diameter Bilah d1 | Diameter Pengelakan d2 | Panjang Bilah Berkesan L1 | Diameter Pemegang D | Panjang Keseluruhan L | Kiraan Bilah | Diameter Lubang Bawah |
| 0.25 | M1*P0.25 | 0.7 | 0.375 | 2.8 | 4 | 50 | 3 | 0.75 | |
| 0.25 | M1.2*P0.25 | 0.9 | 0.575 | 3 | 4 | 50 | 3 | 0.95 | |
| 0.3 | M1.4*P0.3 | 1.05 | 0.66 | 3.2 | 4 | 50 | 3 | 1.1 | |
| 0.35 | M1.6*P0.35 | 1.2 | 0.745 | 4 | 4 | 50 | 3 | 1.25 | |
| 0.35 | M1.8*P0.35 | 1.41 | 0.955 | 4.1 | 4 | 50 | 3 | 1.45 | |
| 0.4 | M2*P0.4 | 1.S4 | 1.02 | 4.4 | 4 | 50 | 3 | 1.6 | |
| 0.45 | M2.5*P0.45 | 1.96 | 1.375 | 5.3 | 4 | 50 | 3 | 2.1 | |
| 0.5 | M3*P0.5 | M3.5*P0.5 | 2.4 | 1.75 | 6.4 | 4 | 50 | 3 | 2.5 |
| 0.5 | M4-M6*P0.5 | 3 | 2.35 | 8.6 | 4 | 50 | 3 | 3.5 | |
| 0.5 | M6-M10*P0.5 | 4.8 | 4.15 | 13 | 6 | 50 | 3 | 5.5 | |
| 0.5 | M10-M16*P0.5 | 8 | 7.35 | 21.8 | 8 | 60 | 3 | 9.5 | |
| 0.6 | M3.5*P0.6 | 2.75 | 1.97 | 7.4 | 4 | 50 | 3 | 2.9 | |
| 0.7 | M4*P0.7 | 3.15 | 2.24 | 8.6 | 4 | 50 | 3 | 3.3 | |
| 0.75 | M4.5*P0.75 | 3.5 | 2.525 | 9.5 | 4 | 50 | 3 | 3.8 | |
| 0.75 | M6*P0.75 | 4.8 | 3.825 | 13 | 6 | 50 | 3 | 5.3 | |
| 0.75 | M8*P0.75 | 6 | 5.025 | 16 | 6 | 50 | 3 | 7.3 | |
| 0.75 | M10*P0.75 | 8 | 7.025 | 21.8 | 8 | 60 | 3 | 9.3 | |
| 0.8 | M5*P0.8 | 4 | 2.96 | 12 | 4 | 50 | 3 | 4.2 | |
| 1 | M6*P1 | 4.8 | 3.5 | 13 | 6 | 50 | 3 | 5 | |
| 1 | M8*P1 | 6 | 4.7 | 16 | 6 | 50 | 3 | 7 | |
| 1 | M10*P1 | 8 | 6.7 | 21.8 | 8 | 60 | 3 | 9 | |
| 1 | M12*P1 | 10 | 8.7 | 25 | 10 | 75 | 4 | 11 | |
| 1 | M14*P1 | 10 | 8.7 | 28 | 10 | 75 | 4 | 13 | |
| 1 | M16*P1 | 12 | 10.7 | 30 | 12 | 75 | 4 | 15 | |
| 1 | M20-M40*P1 | 15.8 | 14.5 | 40 | 16 | 90 | 4 | 19 | |
| 1.25 | M8*P1.25 | 6 | 4.375 | 16 | 6 | 50 | 3 | 6.8 | |
| 1.25 | M8*P1.25 | 6.5 | 4.87 | 20 | 8 | 60 | 3 | 6.8 | |
| 1.25 | M10*P1.25 | 8 | 6.375 | 21.8 | 8 | 60 | 3 | 8.8 | |
| 1.25 | M12*P1.25 | 10 | 8.375 | 25 | 10 | 75 | 4 | 10.8 | |
| 1.25 | M14*P1.25 | 10 | 8.375 | 28 | 10 | 75 | 4 | 12.8 | |
| 1.25 | M16-M40*P1.25 | 12 | 10.375 | 30 | 12 | 75 | 4 | 14.8 | |
| 1.5 | M10*P1.5 | 8 | 6.05 | 21.8 | 8 | 60 | 3 | 8.5 | |
| 1.5 | M10*P1.5 | 8.2 | 6.25 | 21.8 | 10 | 75 | 4 | 8.5 | |
| 1.5 | M12*P1.5 | 10 | 8.05 | 25 | 10 | 75 | 4 | 10.6 | |
| 1.5 | M14*P1.5 | 12 | 10.05 | 28 | 12 | 75 | 4 | 12.6 | |
| 1.5 | M16*P1.5 | 12 | 10.05 | 30 | 12 | 75 | 4 | 14.6 | |
| 1.5 | M20-M40*P1.5 | 15.8 | 13.85 | 40 | 16 | 90 | 4 | 18.6 | |
| 1.75 | M12*P1.75 | 10 | 7.725 | 25 | 10 | 75 | 4 | 10.3 | |
| 2 | M14*P2 | 10 | 7.4 | 25 | 10 | 75 | 4 | 12.1 | |
| 2 | M14*P2 | 11.6 | 9 | 29 | 12 | 74 | 4 | 12.1 | |
| 2 | M16*P2 | 12 | 9.4 | 27 | 12 | 75 | 4 | 14.1 | |
| 2 | M16*P2 | 13.6 | 11 | 50 | 14 | 100 | 4 | 14.1 | |
| 2 | M20-M40*P2 | 15.8 | 13.2 | 40 | 16 | 90 | 4 | 18.1 | |
| 2.5 | M18-M20*P2.5 | 14 | 10.75 | 40 | 14 | 90 | 4 | 15.5 | |
| M20*P2.5 | 16 | 12.75 | 61 | 16 | 100 | 4 | 17.6 | ||
| 3 | M24*P3.0 | 16 | 12.1 | 45 | 16 | 90 | 4 | 21.2 | |
| 3.5 | M30*P3.5 | 16 | 11.45 | 48 | 16 | 90 | 4 | 26.5 |
Pemotong pengilangan benang tiga gigi ini mematuhi piawaian benang metrik ISO, yang menampilkan sudut benang 60° untuk benang berketepatan tinggi. Reka bentuk pemotongan tiga gigi membolehkan pemotongan serentak beberapa garisan benang, meningkatkan kecekapan pemesinan dan mengurangkan beban pemotongan. Pemotong boleh didapati dalam dua saiz utama: 3 kali diameter dan 4 kali diameter, dengan pilihan standard berbilang diameter dan benang untuk memenuhi pelbagai keperluan pemesinan.
Ia sesuai untuk bahan dengan kekerasan sehingga HRC 45°, termasuk keluli karbon, keluli tahan karat, aloi aluminium dan aloi tembaga. Reka bentuk seruling yang dioptimumkan meningkatkan kestabilan pemotongan, meminimumkan rintangan pemotongan, dan memastikan ketepatan benang yang tinggi dan kualiti permukaan. Pilihan diameter 4x yang lebih panjang sesuai untuk pemesinan lubang benang dalam, manakala pilihan diameter 3x menyediakan penyelesaian seimbang untuk aplikasi benang am.
