• Pemotong pengilangan universal sesuai untuk rawatan haba semua siri bahan keluli. Ia mempunyai reka bentuk struktur U-groove dan sesuai untuk kedua-dua pengasaran dan kemasan.
• Ia juga sesuai untuk pemprosesan bahan bukan keluli dan aluminium. Ia mempunyai rangkaian spesifikasi dan model yang lengkap serta pelbagai kegunaan.

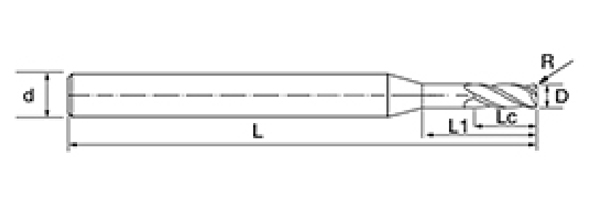

| Tidak. | Diameter D | Sudut R R | Panjang Seruling Lc | Panjang Berkesan L1 | Panjang Keseluruhan L | Shank Dia d | Kiraan Bilah F |
| NNC-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
| NNC-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1-L10 | 1 | 0.1 | 1 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1-L12 | 1 | 0.1 | 1 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
| NNC-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1-L16 | 1 | 0.2 | 1 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L18 | 1.5 | 0.2 | 1.5 | 18 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L20 | 1.5 | 0.2 | 1.5 | 20 | 50 | 4 | 4 |
| NNC-4RSP-D2-L6 | 2 | 0.1 | 2 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D2-L6 | 2 | 0.2 | 2 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
| NNC-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
| NNC-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 60 | 4 | 4 |
| NNC-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 60 | 4 | 4 |
| NNC-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 60 | 4 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 60 | 6 | 4 |
| NNC-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 60 | 6 | 4 |
| NNC-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
| Siri Alat | Diameter | Jejari | Jejari Sudut | Panjang Seruling | Panjang Berkesan | Panjang Keseluruhan | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Pemotong Pengilangan Karbida Universal NNC | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /-0.005 | CR0.1~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0.012 | R2.0~R5.0 | /-0.008 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~R10.0 | /-0.01 | |||||||

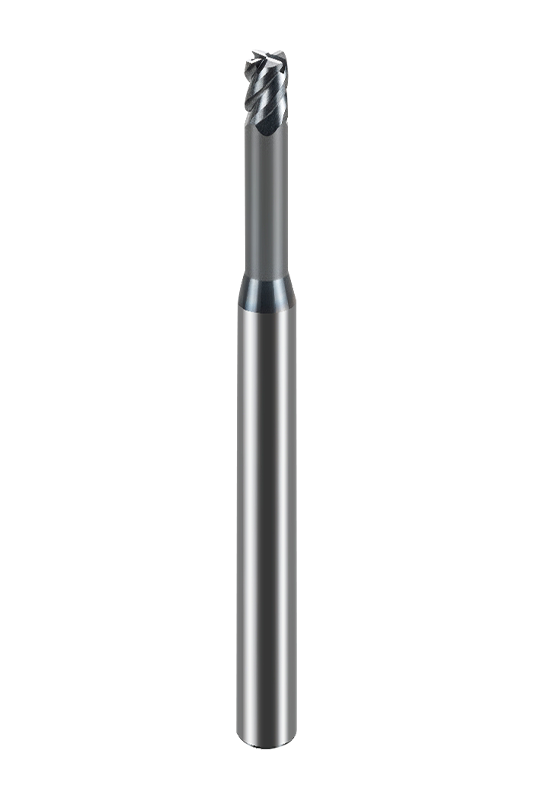

Kilang hujung hidung bulat alur dalam 4 seruling NNC-4RSP tersedia dalam pelbagai saiz, daripada diameter 0.5mm hingga 12mm, dengan panjang alur biasa 2mm, 4mm, 6mm dan 8mm, dan jumlah panjang 50mm, 60mm dan ke atas. Pelbagai ini menampung kedalaman dan kontur yang berbeza, membolehkan operasi yang fleksibel walaupun dalam ruang yang sempit.
Kilang akhir ini menampilkan reka bentuk hidung bulat alur dalam, digabungkan dengan sudut heliks 35°, untuk memastikan pemindahan cip yang berkesan dan kestabilan pada kedalaman pemotongan yang besar. Geometri hidung bulat dengan peralihan bulat mengurangkan rintangan pemotongan, meningkatkan kelancaran pemotongan, dan membantu mencapai kemasan permukaan yang lebih baik sambil meminimumkan getaran, dengan itu meningkatkan ketepatan pemesinan.
Alat ini dihasilkan oleh pengisaran CNC berketepatan tinggi, menggunakan substrat karbida bijirin ultra-halus (0.4μm) untuk ketajaman dan rintangan haus yang sangat baik. Salutan komposit kromium-aluminium terbarunya memberikan pengoksidaan dan rintangan haus yang sangat baik pada suhu tinggi, memastikan prestasi yang stabil walaupun pada kelajuan tinggi dan kadar suapan.
Kilang akhir ini sesuai untuk bahan dengan kekerasan sehingga HRC45, termasuk keluli karbon, keluli aloi, keluli pra-keras dan besi tuang, serta logam bukan ferus seperti aloi kuprum.
Penubuhan perusahaan
Pekerja
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4 Seruling Deep Groove Round Nose End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4 Seruling Deep Groove Round Nose End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Kami akan membalas anda dalam masa 12 jam selepas menerima pertanyaan pada hari bekerja.
Kami adalah pengilang, kami menghasilkan dan menjual sendiri.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4 Seruling Deep Groove Round Nose End Mills Manufacturers.
Produk kami meliputi hampir keseluruhan industri acuan, industri pertahanan, industri aeroangkasa, industri automotif, produk elektronik dan bidang lain.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4 Seruling Deep Groove Round Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4 Seruling Deep Groove Round Nose End Mills Company
Pertama, selepas setiap proses, kami menjalankan pemeriksaan yang sepadan. Untuk produk akhir, kami akan menjalankan 100% pemeriksaan penuh mengikut keperluan pelanggan dan piawaian antarabangsa;
Kemudian, kami mempunyai peralatan ujian terkemuka yang canggih dan lengkap dalam industri, seperti penganalisis spektrum, mikroskop metalografi, dll., yang boleh memastikan kestabilan dan konsistensi alat pemotong, sambil memenuhi keperluan ujian ketepatan tinggi pelanggan untuk alat pemotong.
Apabila sebut harga, kami akan mengesahkan dengan anda kaedah transaksi, FOB, CIF, CNF atau pilihan lain. Apabila menghasilkan secara pukal, kami biasanya membuat bayaran pendahuluan 30% dahulu, dan kemudian membayar baki yang tinggal selepas pembentangan bil muatan. Kami kebanyakannya menggunakan T/T sebagai kaedah pembayaran, tetapi L/C juga boleh diterima.
We are 4 Seruling Deep Groove Round Nose End Mills Manufacturers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
